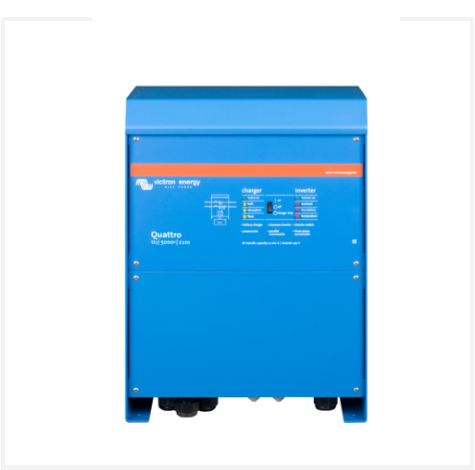

Victron Quattro 12/5000/220-100/100 230V VE.Bus

The Victron Quattro 12/5000/220-100/100 230V VE.Bus is a multifunctional power solution designed to integrate seamlessly into various energy systems. It combines the functionality of an inverter, charger, and AC transfer switch, suitable for both off-grid and grid-connected applications. Here are the detailed specifications and features of this device:

Key Features:

1. Dual AC Inputs: Allows connection to two independent AC sources, such as the grid and a generator, with automatic switching.
2. Dual AC Outputs: Ensures uninterrupted power to critical loads.
3. PowerAssist Technology: Enhances the capacity of the grid or generator by adding additional power from the battery.
4. Parallel and Three-Phase Operation: Multiple units can be connected in parallel or configured for three-phase output.
5. VE.Bus Communication: Enables integration with other Victron Energy products for system monitoring and control.

Specifications:

• Inverter Specifications:
  • Continuous Power Output: 5000VA (4000W at 25°C)
  • Peak Power: 10000W
  • Output Voltage: 230V AC ± 2%
  • Frequency: 50 Hz ± 0.1% (adjustable to 60 Hz)
  • Efficiency: 92%
  • No-load Power Consumption: 25W
• Charger Specifications:
  • Input Voltage Range: 187-265V AC
  • Charger Current: 220A (battery voltage 12V)
  • Charge Algorithm: Adaptive, four-stage
  • Battery Types: Lead-acid, Lithium-ion
• AC Input Specifications:
  • Input Voltage Range: 187-265V AC
  • Frequency: 45-65 Hz
• AC Output Specifications:
  • Output Voltage: 230V AC ± 2%
  • Output Frequency: 50 Hz ± 0.1%
  • Second AC Output: Provides uninterrupted power to critical loads
• General Specifications:
  • Operating Temperature Range: -20°C to +50°C (full load rating up to 40°C)
  • Storage Temperature: -40°C to +65°C
  • Humidity: Max 95% (non-condensing)
  • Enclosure: IP21
  • Dimensions: 362 x 258 x 218 mm
  • Weight: 30 kg

Applications:

• Off-Grid Solar Systems: Supplies reliable power for remote homes, cabins, and other locations without grid access.
• Backup Power Systems: Maintains power during outages with seamless transfer between grid and generator.
• Marine and Mobile Applications: Suitable for boats, RVs, and other mobile power needs.
• Industrial and Commercial Use: Can be integrated into larger systems for businesses requiring reliable and uninterrupted power.

Advantages:

• High Reliability: Engineered for durability and long-term performance in various environments.
• Versatility: Compatible with a wide range of battery types and suitable for multiple applications.
• Scalability: Expandable by connecting multiple units in parallel or configuring for three-phase systems.
• Ease of Use: Simplifies system design and installation with integrated functionality.
