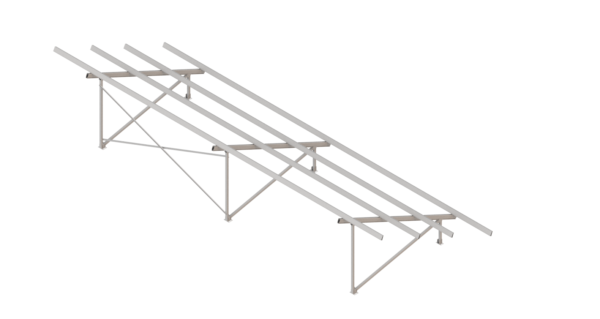

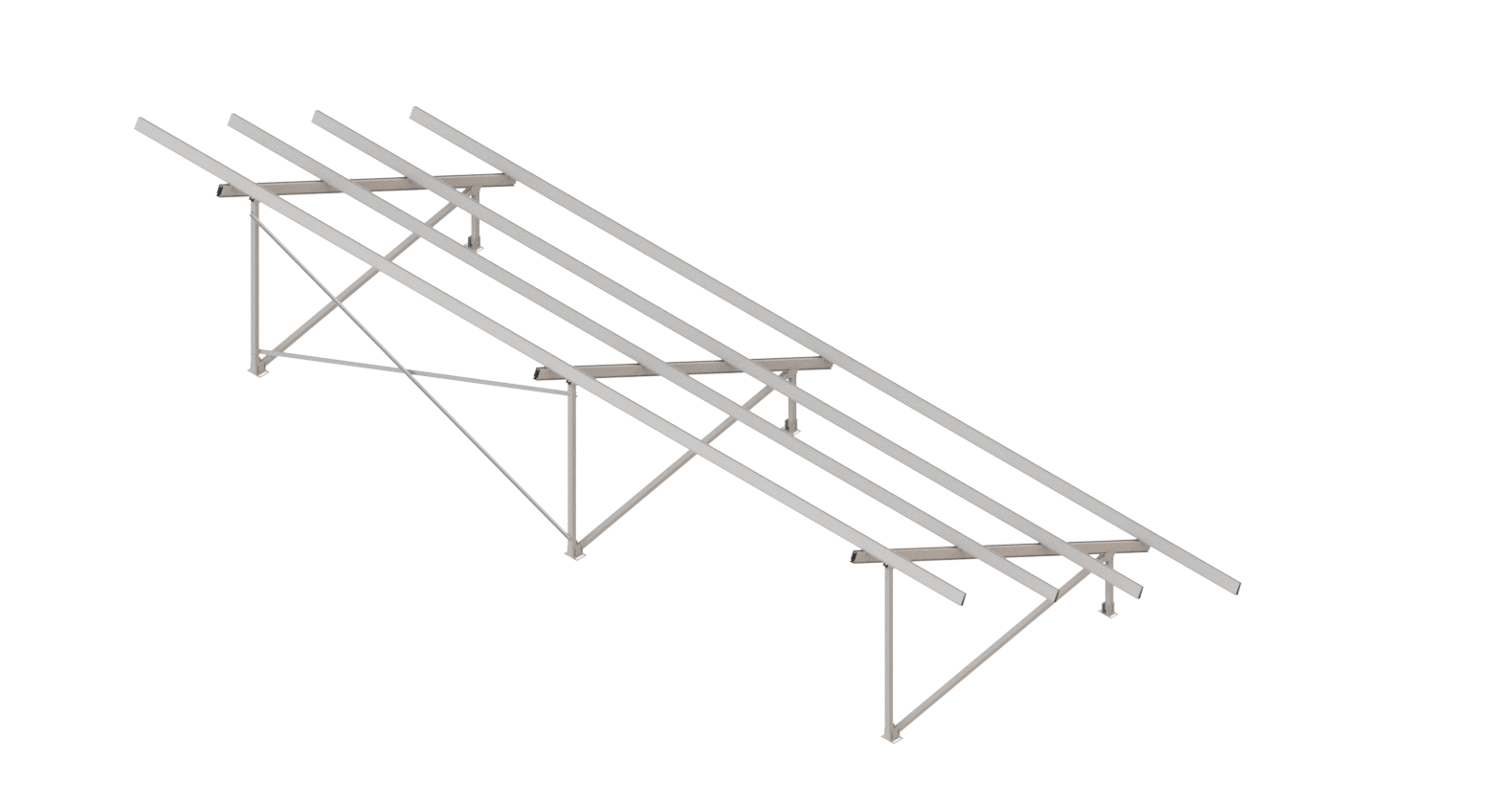

Lumax Ground mount kit (2v7 – 2v8) – To install 14 – 16 x PV Modules 1134mm wide
Embrace the power of solar energy with our Concrete Mount Solar System. Designed for ease of installation and reliability, this versatile structure offers a convenient solution for deploying solar panels in various outdoor environments, ensuring efficient energy generation year-round.
Consist off:
| Product Code | Description | qty | |
| 1 | LM-AEC30-45-RNW | ADJUSTABLE END CLAMP FOR 30-45mm FRAMED PANELS | 8 |
| 2 | LM-IC35-GP1-RNW | One pins Inter Clamp For 31mm to 41mmFramed Modules | 28 |
| 3 | LM-R112-5250 | Purlin 112x5250mm AL6063 T6 Mill | 4 |
| 4 | LM-R112-4400 | Purlin 112x4400mm AL6063 T6 Mill | 4 |
| 5 | LM-RS-I-R112-300 | Purlin splice R112 internal – 300mm AL6005 T5 | 4 |
| 6 | LM-PRC | PURLIN TO RAFTER CONNECTOR | 24 |
| 7 | LM-R110-3800 | Rafter 110x3800mm AL6005 T6 Mill | 3 |
| 8 | LM-TTC-90 | R80 to SB Connector (single) 90m | 3 |
| 9 | LM-TTC-120 | R80 to SB Connector (double) 120mm | 3 |
| 10 | LM-FP-120 | Foot piece for double support bar 120mm | 3 |
| 11 | LM-FP-90 | Foot piece for single support bar 90mm | 3 |
| 12 | LM-SB-550 | Support Bar 55x55x550mm AL6063 T6 Mill | 3 |
| 13 | LM-SB-1740 | Support Bar 55x55x1740mm AL6063 T6 Mill | 3 |
| 14 | LM-SB-2525 | Support Bar 55x55x2525mm AL6063 T6 Mill | 3 |
| 15 | FS-S-25X6 | Stitching screw 22mmx6.3mm SUS304 | 50 |
| 16 | FS-CA-M12X100 | Chemical Anchor M12x100 | 12 |
| 17 | FS-TR-M12X160 | Threaded rod M12 x 160mm SUS304 | 12 |
| 18 | FS-N-M12 | Nut M12 Standard SUS304 | 24 |
| 19 | FS-FW-M12 | Flat washer M12 SUS304 | 24 |
| 20 | LM-R20-4300 | Rail (top fix) 20x4300mm AL6063 T6 Mill | 2 |
| 21 | FS-CAP-M8X60 | Cap Screw – M8X60mm SUS304 | 1 |
| 22 | FS-N-M8 | Nut M8 Standard SUS304 | 1 |
| 23 | FS-FW-M8 | Flat washer M8x16x1.5 SUS304 | 2 |
| 24 | FS-SW-M8 | Spring Washer M8 SUS304 | 1 |
