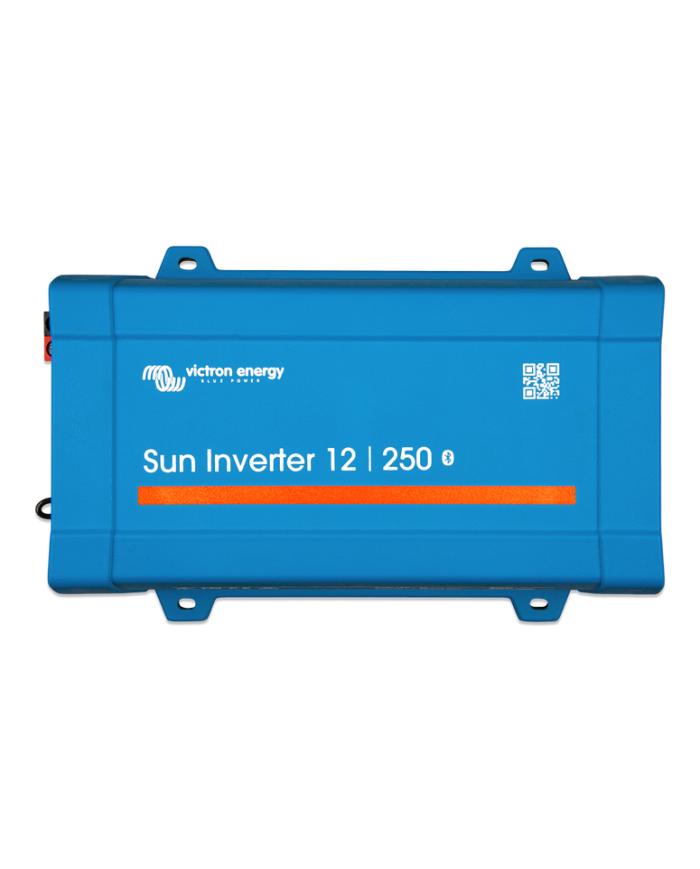

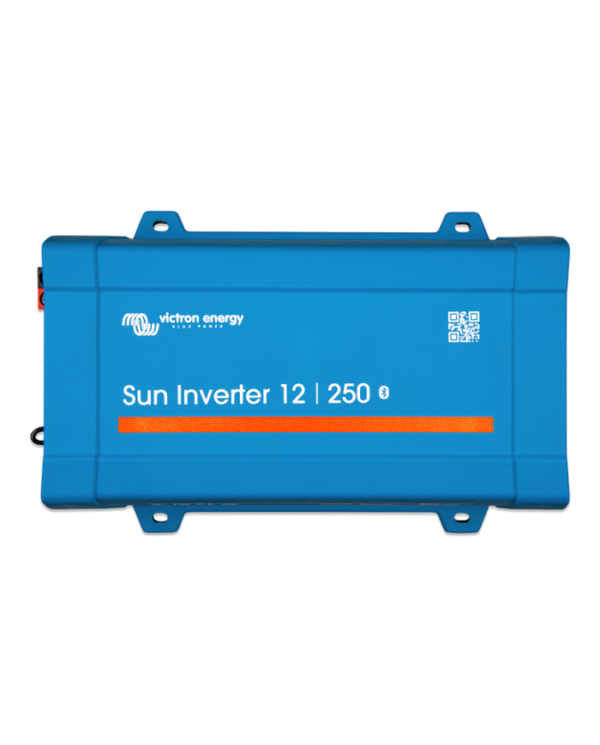

Victron Sun Inverter 12/250-15 IEC

The Victron Sun Inverter 12/250-15 IEC is a reliable and compact inverter designed to convert 12V DC power from batteries into 230V AC power for household appliances. It’s particularly suited for small-scale solar power systems and off-grid applications where pure sine wave output is essential. Here are the detailed specifications and features of the Victron Sun Inverter 12/250-15 IEC:

Key Features:

1. Compact and Lightweight: Easy to install and transport.
2. Pure Sine Wave Output: Provides a stable power supply suitable for sensitive electronic devices.
3. High Efficiency: Ensures minimal energy loss during the conversion process.
4. Low Power Consumption: Efficient operation with low standby power consumption.
5. IEC Outlet: Standard IEC socket for easy connection to appliances.

Specifications:

Inverter:

• Continuous Power Output: 250VA (200W at 25°C)
• Peak Power: 450W
• Output Voltage: 230V AC ± 2%
• Output Frequency: 50 Hz ± 0.1% (adjustable to 60 Hz)
• Output Waveform: Pure sine wave
• Efficiency: 87%
• No-load Power Consumption: 4.2W

Battery:

• Battery Voltage: 12V DC
• Low Battery Alarm: 10.5V DC (adjustable)
• Low Battery Shutdown: 10V DC (adjustable)
• High Battery Shutdown: 15.5V DC

General:

• Operating Temperature Range: -20°C to +50°C (derate above 25°C)
• Storage Temperature: -40°C to +80°C
• Humidity: Max 95% (non-condensing)
• Enclosure: IP21
• Cooling: Natural convection
• Dimensions: 86 x 172 x 275 mm
• Weight: 3.3 kg

Applications:

• Off-Grid Solar Systems: Suitable for small solar setups to power household appliances.
• Backup Power Systems: Provides backup power during outages for essential devices.
• Mobile Applications: Ideal for use in RVs, boats, and other mobile power needs.
• Small Industrial Use: Can be used in small industrial applications where AC power is required.

Advantages:

• Pure Sine Wave Output: Ensures compatibility with sensitive electronics and appliances.
• Compact Size: Easy to install and transport, ideal for portable power solutions.
• High Efficiency: Reduces energy loss, ensuring more power is available for your devices.
• Reliable Performance: Provides consistent and stable power output under various conditions.

Installation:

The Victron Sun Inverter 12/250-15 IEC is designed for straightforward installation with a standard IEC outlet for easy connection to appliances. It’s important to ensure proper ventilation around the inverter to prevent overheating and to follow the manufacturer’s guidelines for safe installation and operation.
